Overview
Designed for installation in factory or custom locations, the GB10CF 1” tweeter with acoustic lens provides ultra-low distortion, audiophile-grade performance with flat and extended high frequency response. The new carbon fiber dome allows a high pass crossover frequency of 2kHz when a Linkwitz Riley 24dB/oct filter is used. The unique installation kit makes custom installation a breeze whether you choose flush mount or something more custom.
Features
· 1” (25 mm) Carbon Fiber Diaphragm
· 1” (25 mm) Voice Coil
· Acoustic Lens
· Neodymium Motor
· Chrome-Plated Cast Zinc Housing
· Copper Inductance- and Distortion-Reducing Pole Piece Cap

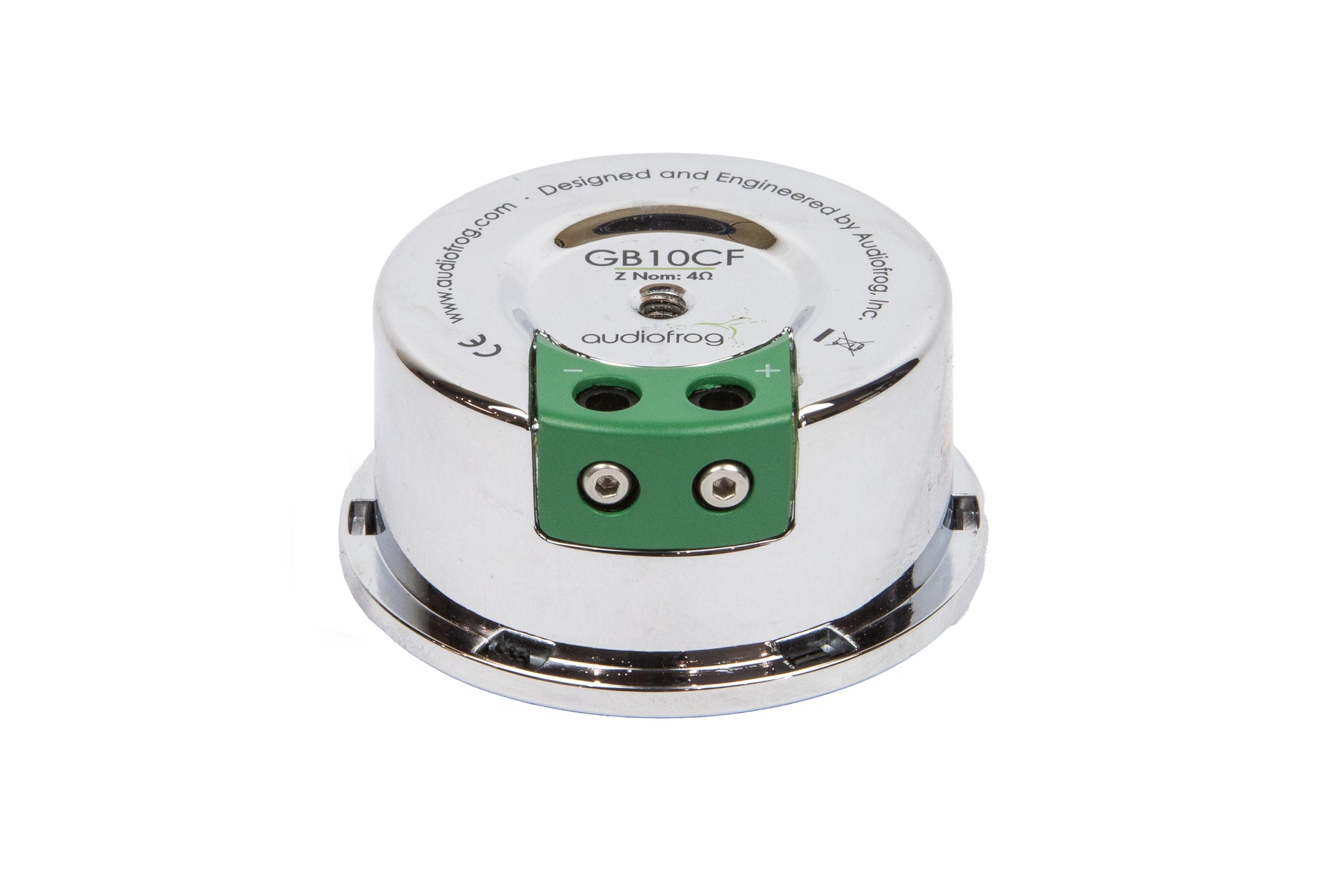

· Screw Terminals

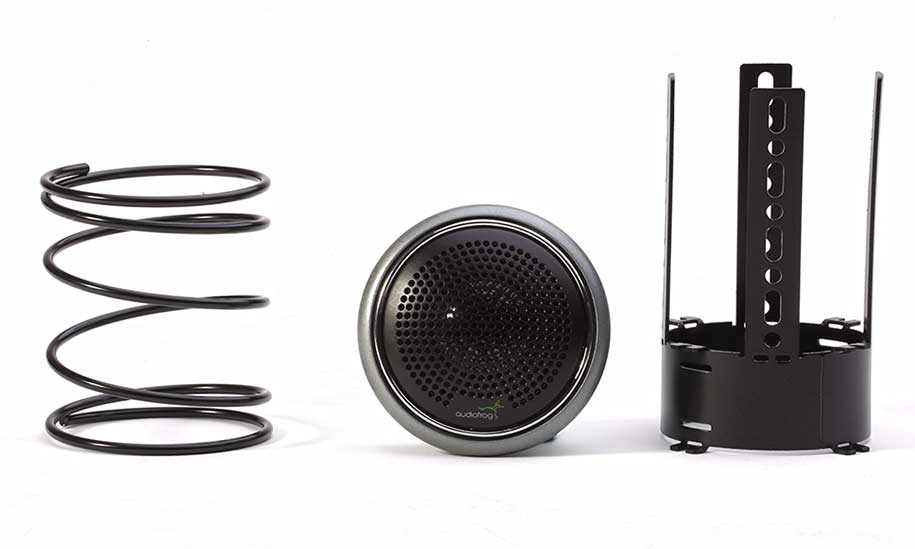

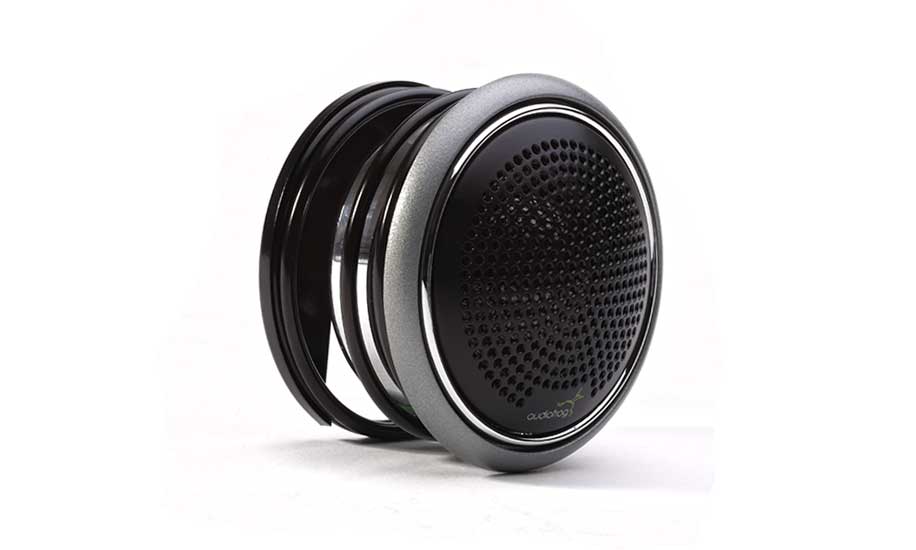

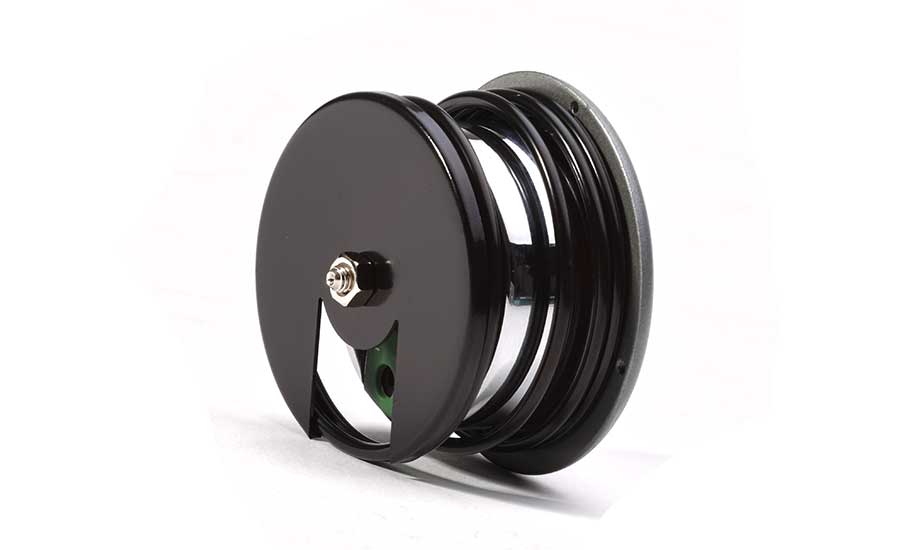

· All-Metal Flush and Behind-the-Panel Mounting Kits Included
· Hex Screws and Tools Included

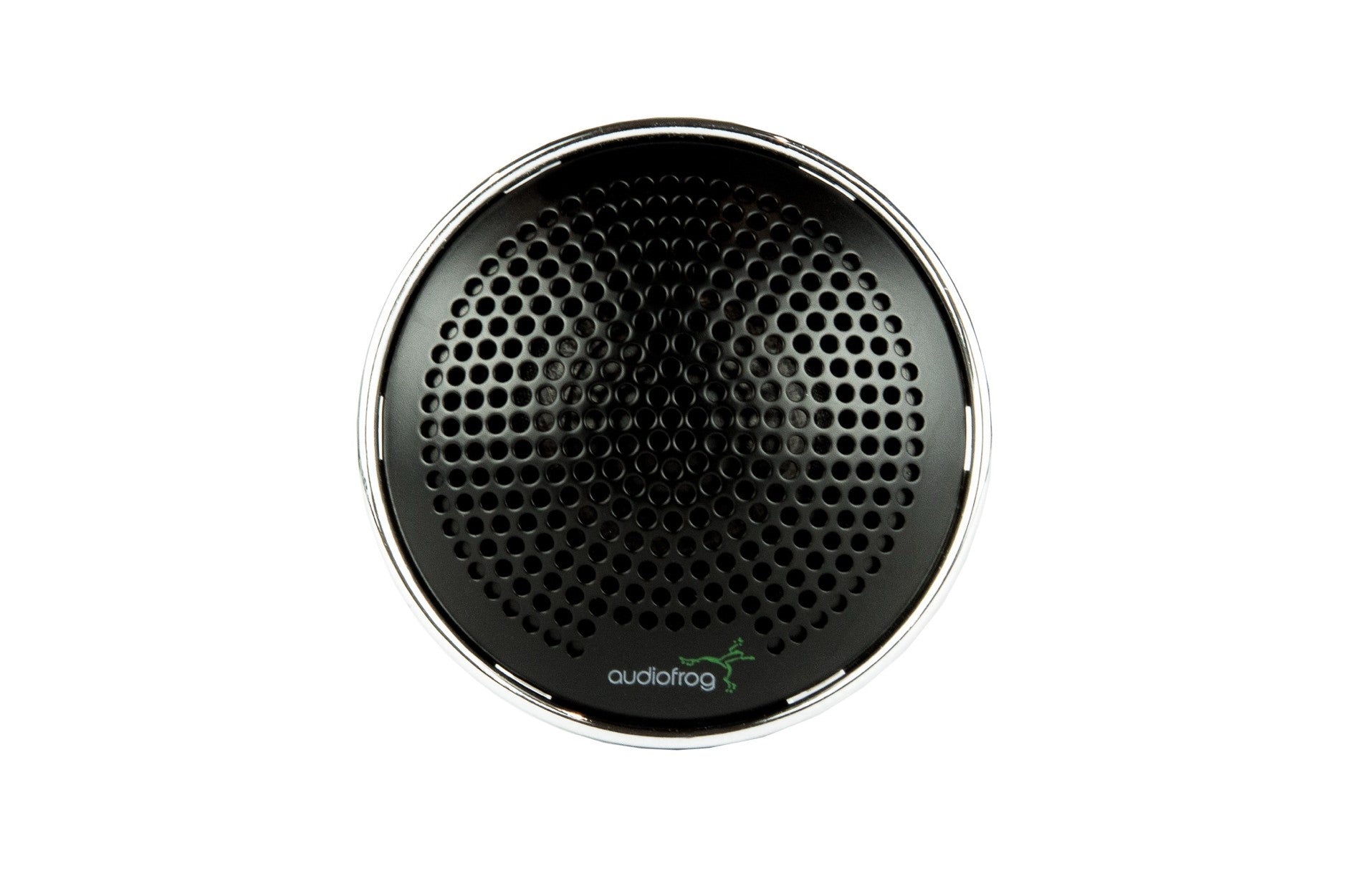

· Removable and Paintable Grille
· Rub-On Logos Included for Custom Installation
Specifications:
· Nominal Impedance: 4 Ω
· RMS Power Handling: 100 W (with recommended crossover)
· Peak Power Handling: 300 W (with recommended crossover)
· Frequency Response (-3 dB): 1.5 kHz – 37 kHz
· Sensitivity (2.83V / 1M): 90 dB
· Recommended Amplifier RMS Power Range: 20 W – 100 W
· Recommended High Pass Filter Frequency and Slope: ≥ 2 kHz, 24 dB/oct Linkwitz Riley
