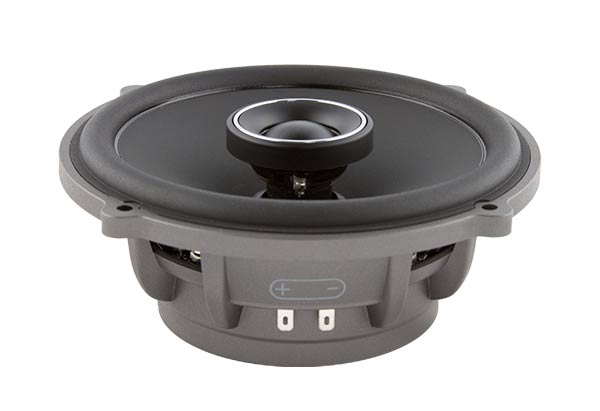

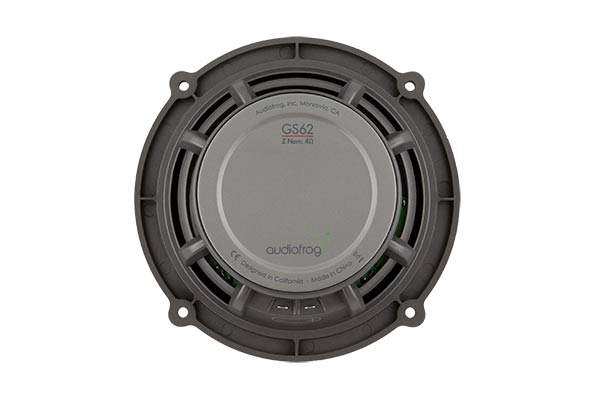

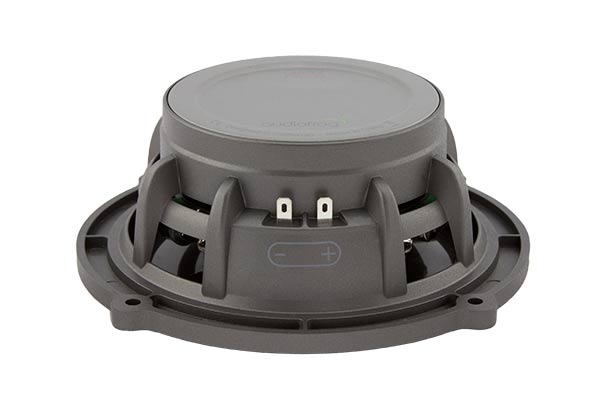

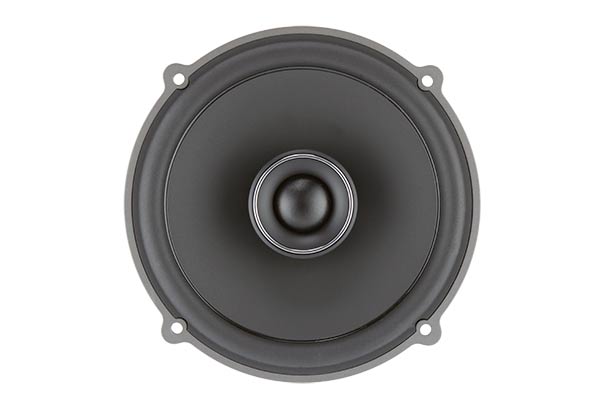

GS62 6″ (165MM) PREMIUM GRADE AUTOMOTIVE FULL RANGE LOUDSPEAKER

Designed as an easily installed premium upgrade, the GS62 includes a proprietary injection-molded ABS and fiberglass vented basket. Ease of installation is ensured with a 1” fabric dome neodymium tweeter that extends a mere 2mm above the surround–sure to fit under factory grilles.

The tweeter faceplate includes a small waveguide designed to boost the tweeter’s low frequencies and ensure a smooth transition to the midrange. That transition is also controlled by a 12dB/octave high pass filter and 6dB/octave low pass filter. The entire crossover network is mounted to a PC board integrated into the basket, which also secures the terminals.

The GS62 woofer includes a 1” copper voice coil wound on a Kapton® former for superior power handling. A multiadapter is included in the kit for easy installation in a variety of factory locations.

Included in the Box:

Included in the Box:

• 2x Audiofrog GS62 Coaxial Loudspeaker

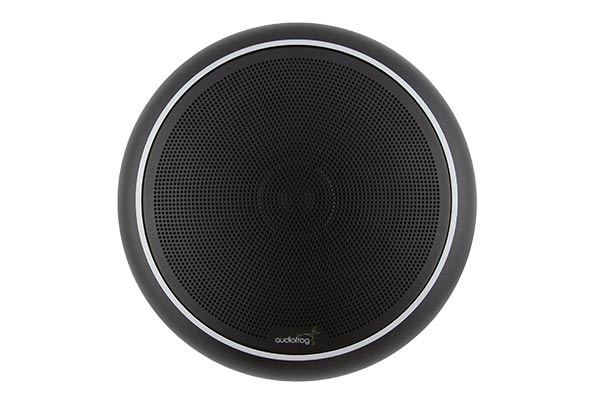

• 2 Grilles
• 2 Grille Mounting Rings
• Installation Hardware
• Owners Manual
