UMI-1v2 Car Audio Tuning Kit

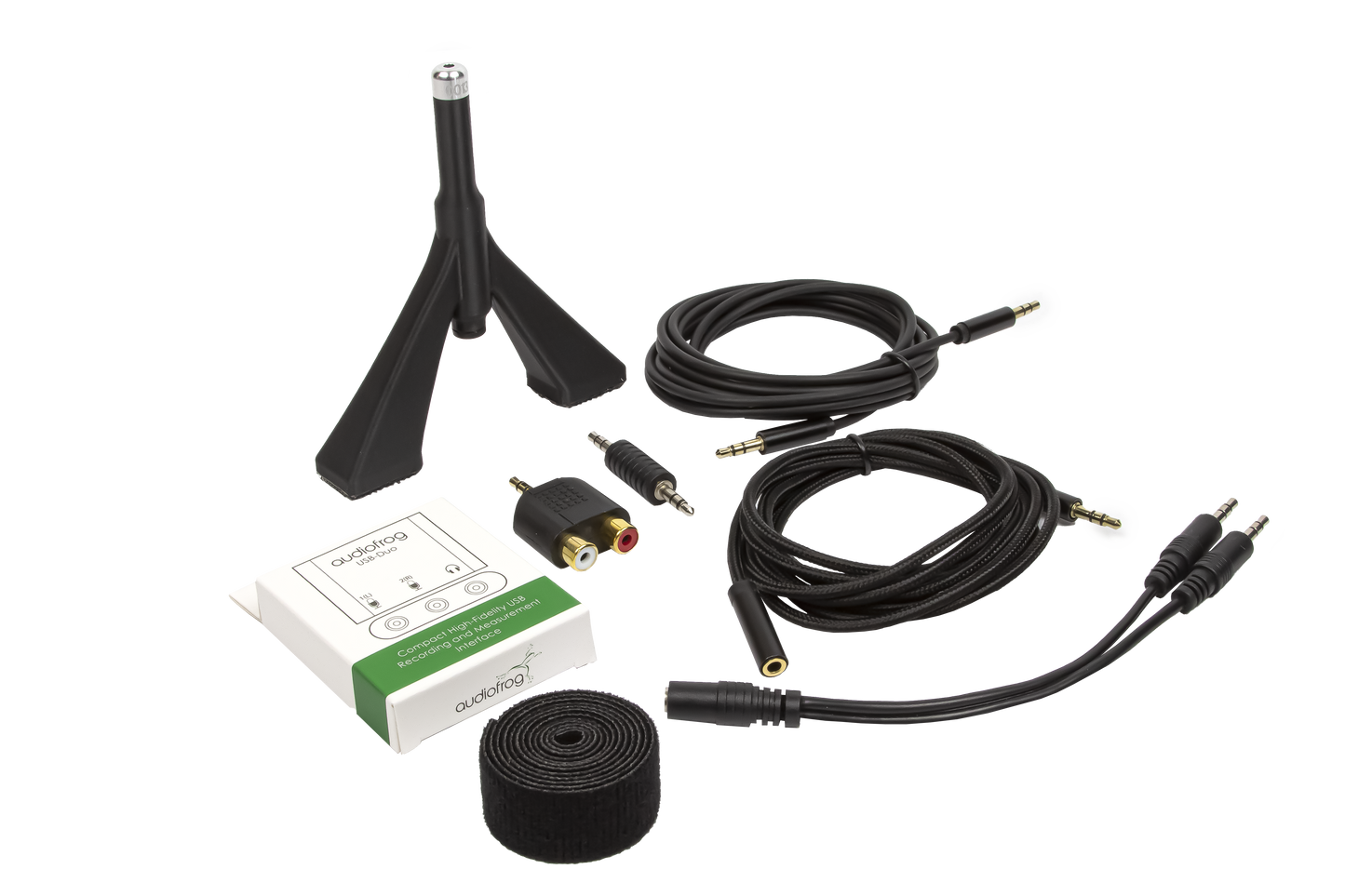

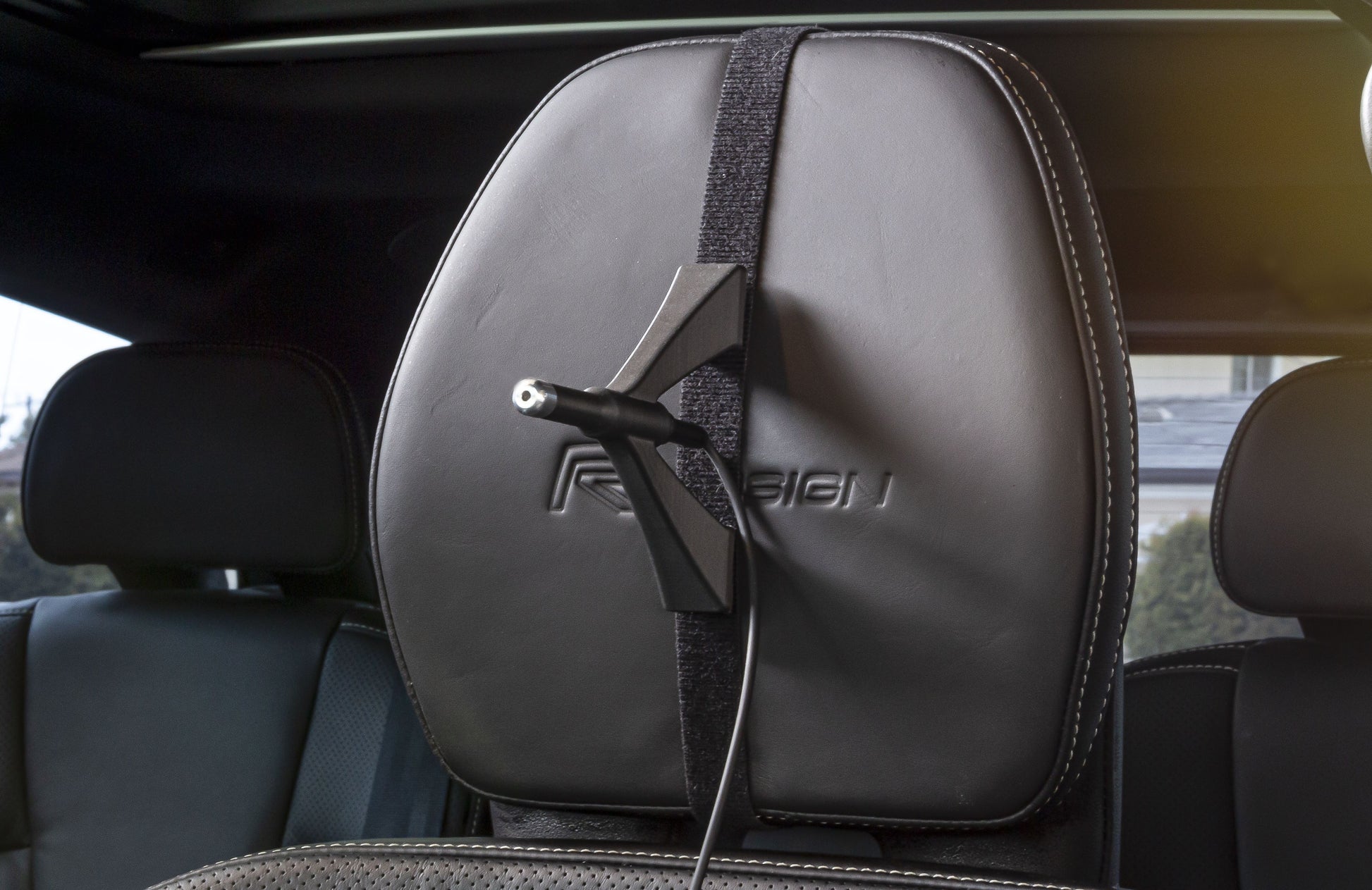

The new Audiofrog UMI-1v2 complete car audio tuning kit includes an omnidirectional measurement microphone integrated into a mic stand that’s easily attached to the vehicle’s headrest using the included Velcro strap. The included USB-Duo 2-channel high performance soundcard allows a second channel to be used as a loop-back connection making impulse and phase response measurements simple. The microphone, soundcard and all the necessary cables and adapters are included in a handy case. Use with PCs and Macs, phones and tablets. Works with Open Sound Meter, REW, SMAART and with many other analysis and tuning software packages.

Features:

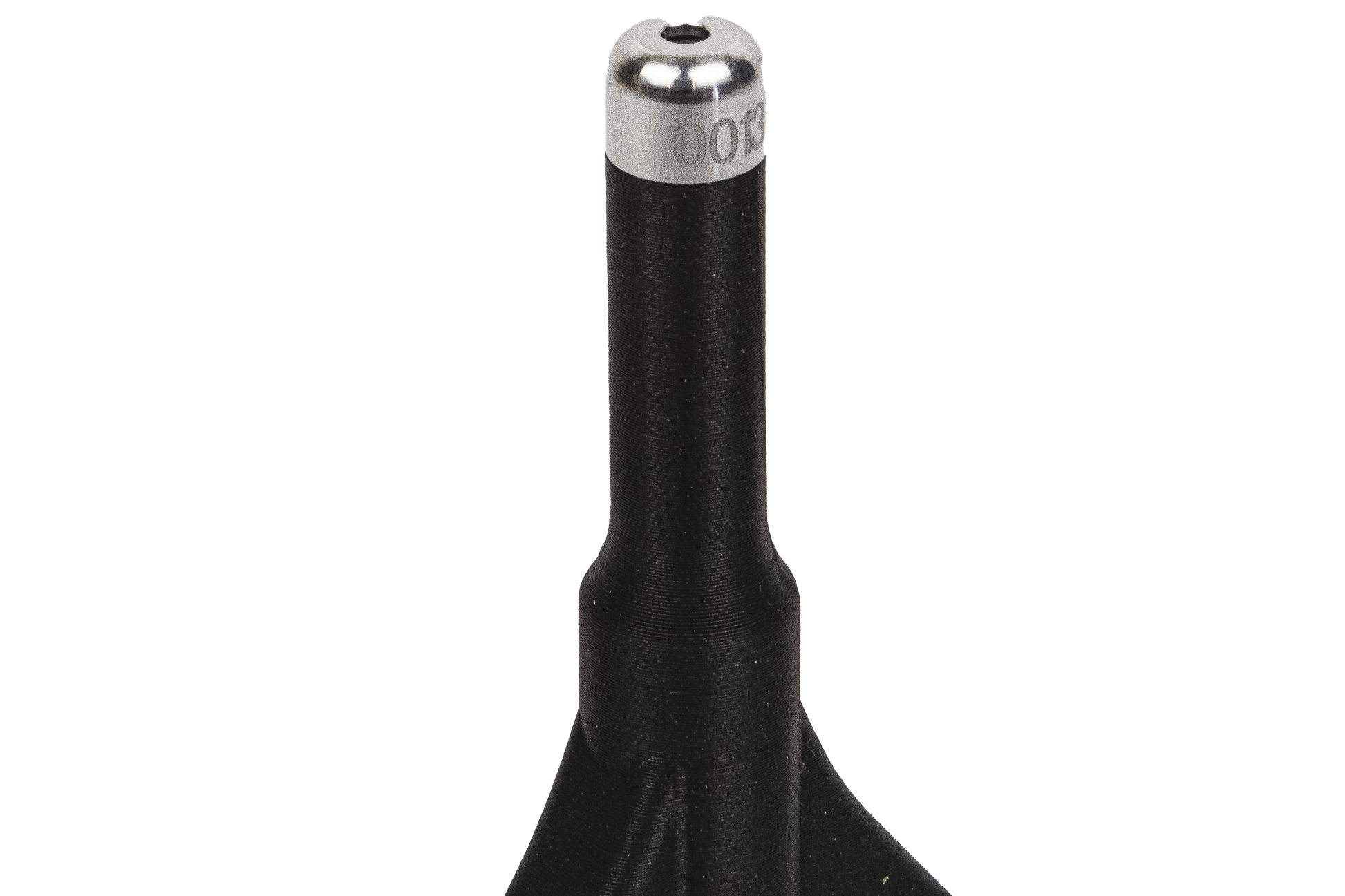

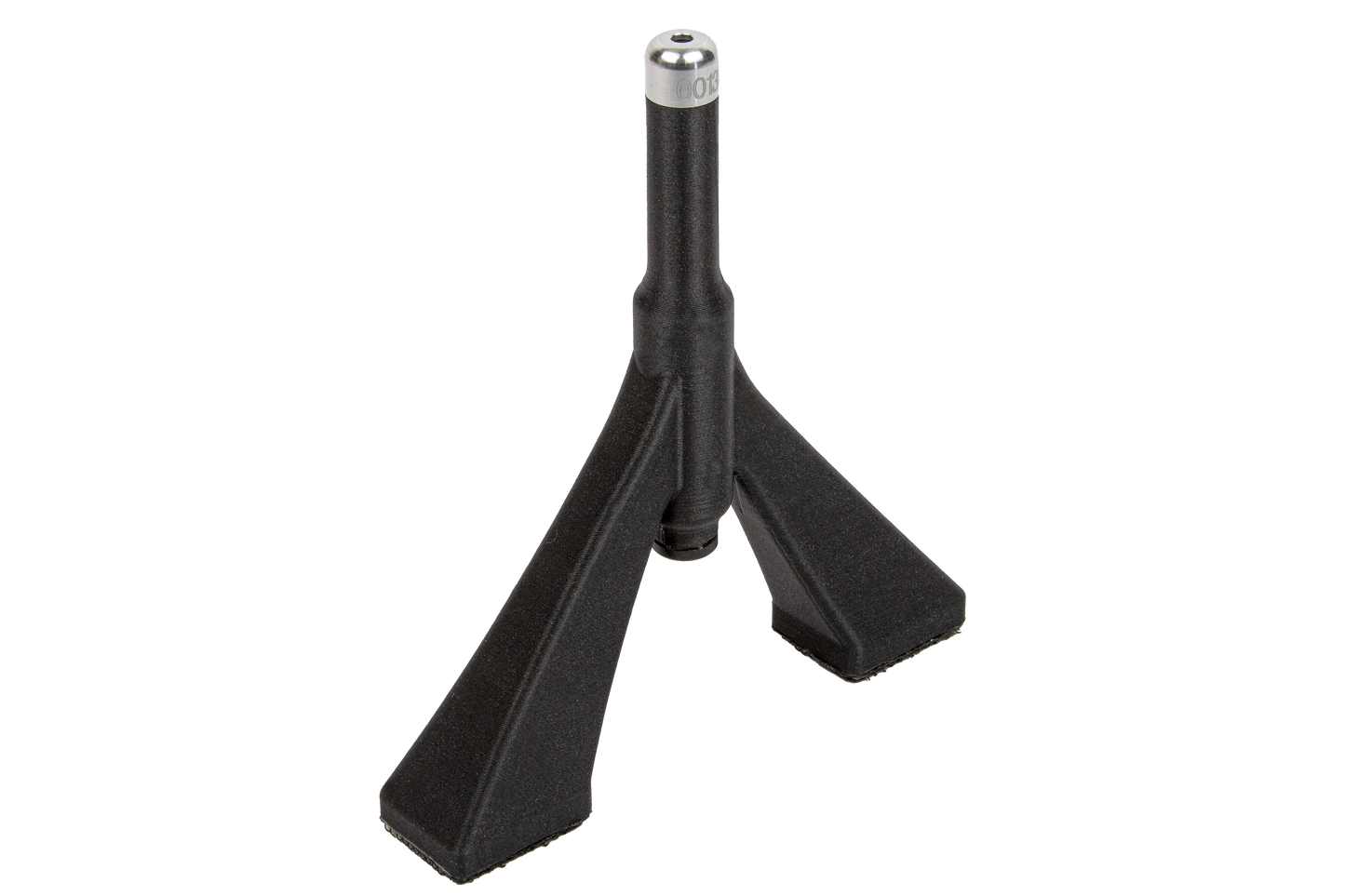

•    Integrated microphone and mic stand
•    20Hz-20kHz omnidirectional pre-polarized condenser microphone
•    Individually calibrated microphone
•    0, 45, 90-degree and car tuning calibration files included
•    USB-Duo, 2-channel soundcard included
•    10-foot audio cable included
•    6-foot audio cable extension included
•    USB-A to USB-C adapter included
•    3.5mm Y-adapter included (for loopback connection)
•    3.5mm to 2-RCA adapter included
•    Velcro strap included (for attaching microphone to headrest)

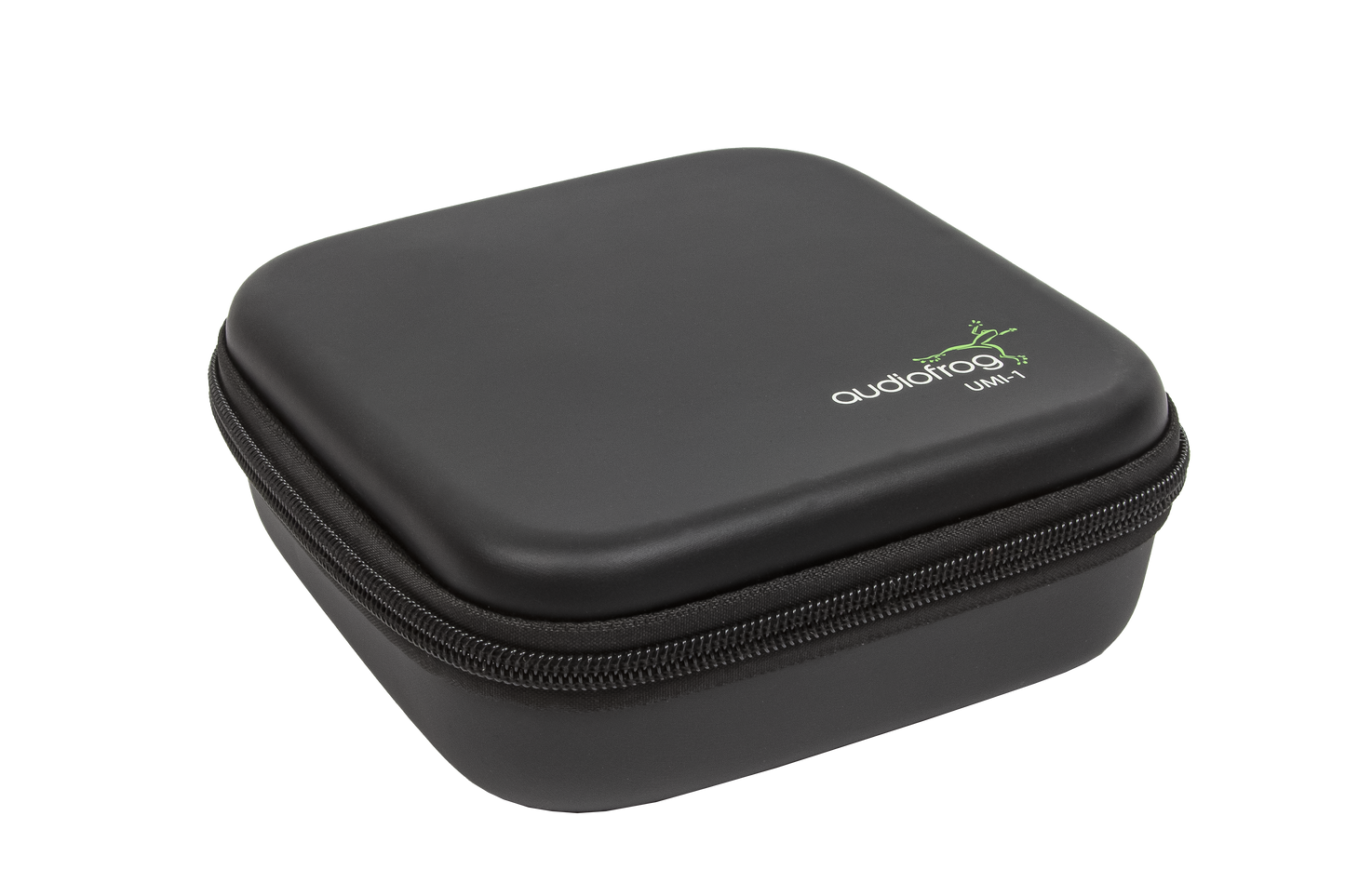

•    Zippered case included
•    Works with most PC-Based acoustic test programs

Specifications:
•    Microphone Element Type: 6mm pre-polarized condenser (electret)
•    Microphone Element Pattern: Omnidirectional
•    Microphone Element Sensitivity: -42 +/-3dB
•    Microphone Element Frequency Response: 20Hz – 20kHz, +6 to -2dB (+/-1dB with calibration)
•    Maximum Measurement SPL: 110dB
